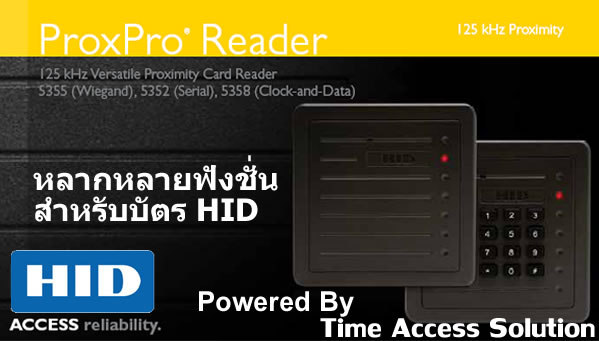

HID ProxPro Reader

ProxCard II card - up to 8 (20 cm)
ISOProx II card - up to 7 (17.5 cm)
DuoProx II card - up to 7 (17.5 cm)
Smart ISOProx II card - up to 7 (17.5 cm)
Smart DuoProx II card � up to 7 (17.5 cm)
HID Proximity & MIFARE card � up to 7
ProxCard Plus card - up to 3 (7.5 cm)
ProxKey II keyfob - up to 3 (7.5 cm)
MicroProx Tag � up to 4 (10.2 cm)
ProxPass Active Vehicle Tag � N/A
*Depending on local installation conditions.

Interfaces with all existing Wiegand protocol access control systems.
Output data in Wiegand or Clock-and-Data format, plus optional
RS232 and RS422 serial interfaces.

5.0 x 5.0 x 1.0 (12.7 x 12.7 x 2.54 cm)

Polycarbonate UL 94

10-28.5 VDC; Linear power supplies
recommended. Reverse voltage protection included.

-22 to 150 F (-30 to 65 C)

125 kHz

UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU),
C-tick (Australia, New Zealand),
SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA
(Singapore), RoHS

Wiegand or Clock-and-Data interface: 500 feet (152 m)
RS-232 interface: 50 feet (15 m)
RS-422 interface: 4000 feet (1219 m)
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent.
Additional conductors may be required for LED or beeper
control. RS-422 requires ALPHA 6212C 2-Twisted Pair, shielded
cable with drain wire, or equivalent for data, plus ALPHA 1292C
two-conductor shielded or equivalent for DC power.

Base Part No.: 5355 Wiegand Interface/Clock-and-Data
Base Part No.: 5352 Serial Interface
