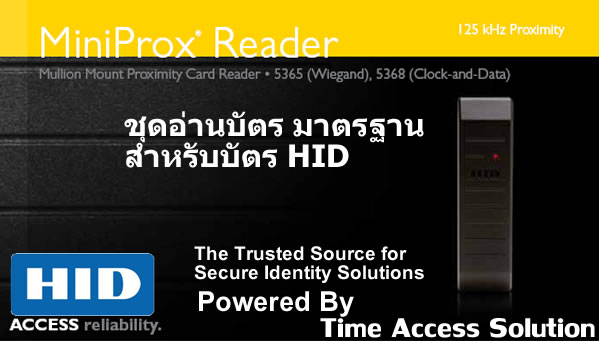

HID MiniProx Reader

ProxCard II card - up to 3� (7.6 cm)
ISOProx II card - up to 2.5� (6.35 cm)
DuoProx II card � up to 2.5� (6.35 cm)
Smart ISOProx/DuoProx II cards � up to 2.5�
Proximity & MIFARE card - up to 2.5� (6.35 cm)
ProxCard Plus card - up to 1.0� (2.5 cm)
ProxKey II keyfob - up to 1.5� (3.8 cm)
MicroProx Tag - up to 2� (5.1 cm)
*Depending on local installation conditions.

Wiegand output model interfaces with all existing Wiegand protocol access control systems. Clock-and-Data

6.0� x 1.7� x 1.0�
(15.2 x 4.3 x 2.54 cm)

Polycarbonate UL 94

5-16 VDC
Linear power supplies are recommended.

-22 to 150 F (-30 to 65 C)

125 kHz

UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU),
C-tick (Australia, New Zealand),
SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA
(Singapore), RoHS

Wiegand interface: 500 feet (150 m)
Clock-and-Data interface: 50 feet (15 m)
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor
minimum stranded with overall shield or equivalent. Additional
conductors may be required for LED or beeper control.

Base Part No.: 5365 Wiegand interface
Base Part No.: 5368 Clock-and-Data interface
